NEC's PA903X is a 9000 lumen installation projector equipped to take on the most demanding integration projects. Enjoy design and installation flexibility with a complete line of optional bayonet style lenses, tilt-free installation capabilities and horizontal/vertical lens shift. What's more, uncompressed high definition video can be projected via integrated HDBaseT.
Technical Information
Controls & AdjustmentsKeystone correction
Lamp Life3000 hour(s)
Lamp Power420 watt
Lens ShiftHorizontal, Vertical
Max Operating Temperature104 degree Fahrenheit
Min Operating Temperature41 degree Fahrenheit
Operating Humidity20 - 80% (non-condensing)
Sound Emission39 decibel
Sound Emission (Economic Mode)33 decibel
3DYes
3D Details3D glasses sold separately
Dimensions & Weight
Height6.6 inch
Weight22.49 lbs
Width19.8 inch
Depth16.2 inch
Projectors
Brightness9000 lumens
Contrast Ratio10000:1
Display Resolution AbbreviationXGA
HD Image Format720p
Horizontal Keystone Correction-40 / +40
Keystone Correction DirectionHorizontal, Vertical
Lamp Life CycleUp to 3000 hour(s) - normal mode, Up to 5000 hour(s) - economic mode
LensNo lens
Lens Shift TypeManual
Max Diagonal Image Size500 inch
Max Horizontal Sync153 kilohertz
Max Projection Distance69 ft
Max Resolution4096 x 2160
Max Vertical Sync120 hertz
Min Diagonal Image Size40.2 inch
Min Projection Distance2.4 ft
Native Aspect Ratio4:3
Native Resolution1024 x 768
PortabilityNon-portable
Vertical Keystone Correction-30 / +30
Zoom TypePowered

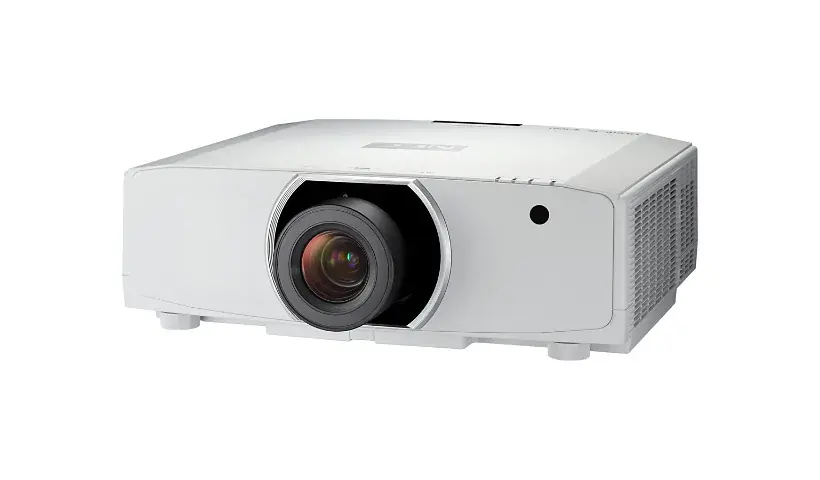

NEC NP-PA903X - LCD projector - no lens - 3D
- PA903X
- 3D
- XGA (1024 x 768)
- 720p
- LCD projector
- 9000 lumens
- 4:3
- no lens
ClassDigital projector
Packaged Quantity1
Product TypeLCD projector
Projector FeaturesAdvanced AccuBlend technology, AutoSense technology, DICOM Simulation Mode, Eco-Mode technology, Edge blending, Geometric Correction, Picture by picture, Picture in picture, Portrait mode, Quick On/Off, Side-by-Side, Stacking correction, TileMatrix, Virtual Remote, Wall color correction
Recommended UsePresentation and multimedia
